4titude FrameStar® 96 Well Low Profile PCR Plate, Non-Skirted - 50 Plates

Features

• Recommended for low volume PCR
• Rigid polycarbonate frame adds to the mechanical stability of the plate - as a result thermal expansion and sample evaporation is reduced significantly, leading to an improved consistency in PCR results
• Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT, qPCR) results
• Improved seal integrity due to thermal stability of frame
• Compatible with standard multichannel pipettes
• 0.15 ml (150 µl) working volume, 0.2 ml (200 µl) max volume
• Raised and color differentiated grid reference to aid well and sample identification

Full Description

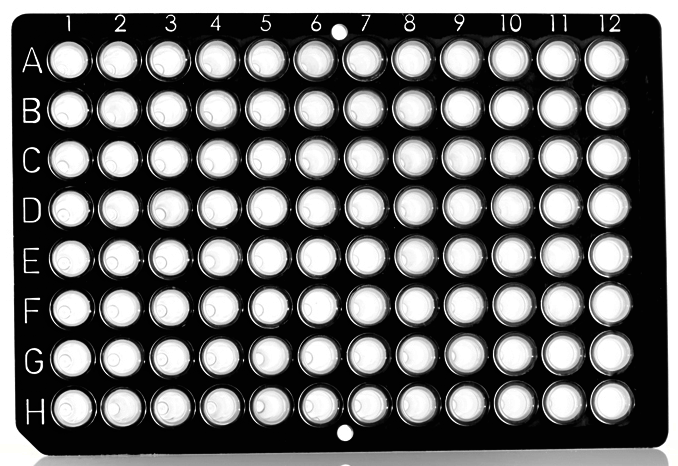

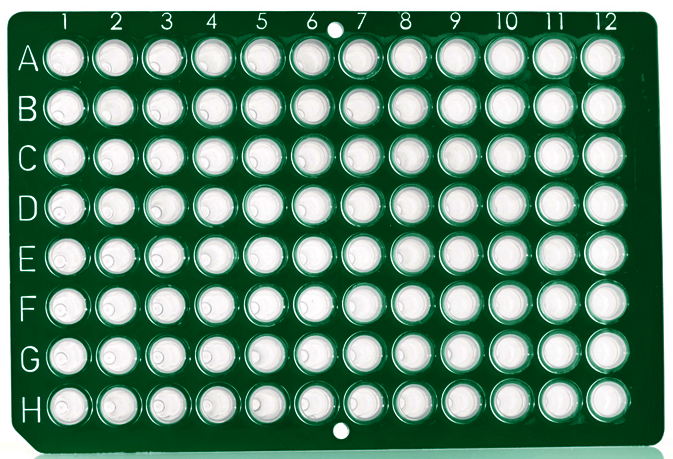

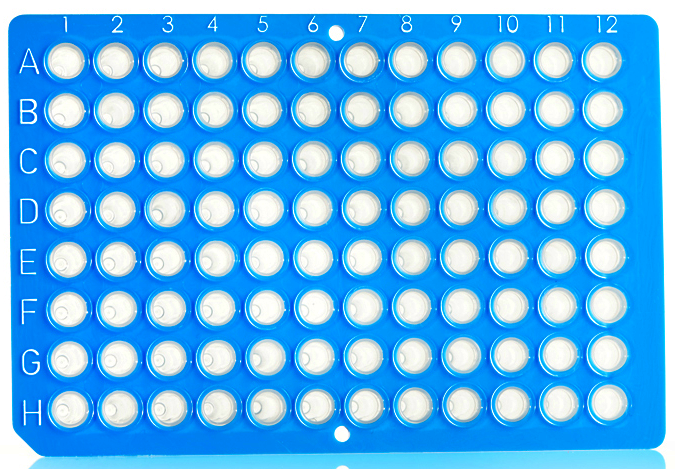

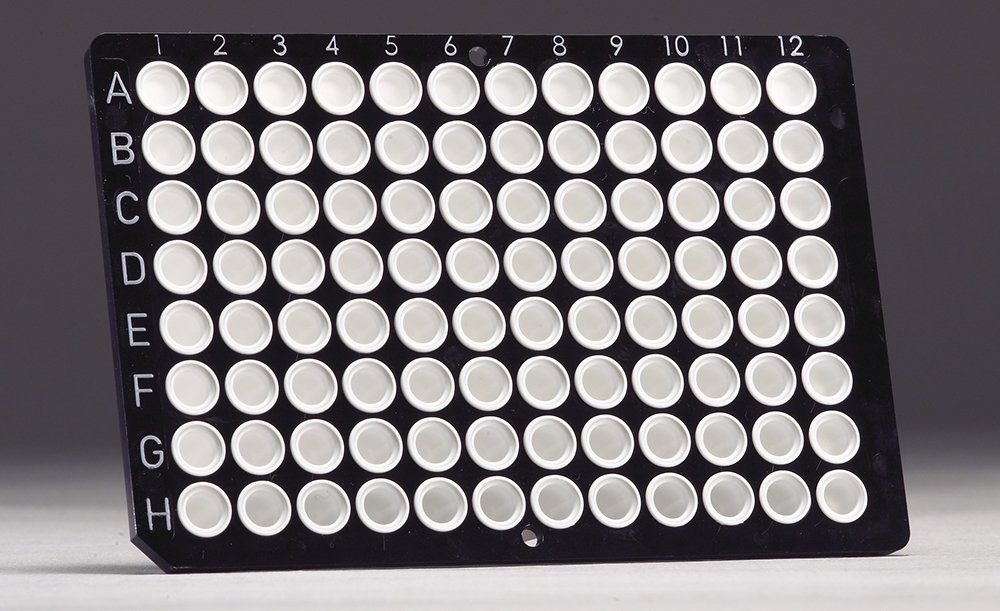

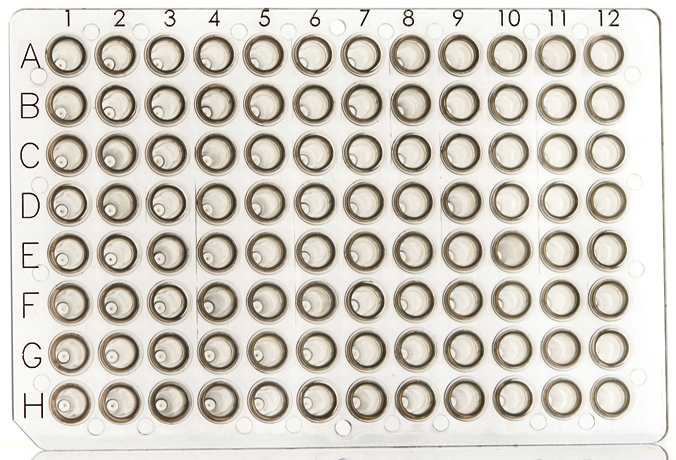

4titude FrameStar® 96 Well Low Profile PCR Plate, Non-Skirted - 50 Plates

Universal fit to low profile 96-well blocks; with low profile 0.15 ml polypropylene wells, a rigid non-skirted polycarbonate frame, and a cut corner at H1

The low profile wells of this plate are shorter than "standard" profile wells, which decrease the "dead space" between the heated lid of the thermal cycler and the sample in the well. This eliminates condensation forming on the side wall of the tubes, preventing reduction in PCR volume and increasing the efficiency of the reaction. This is especially recommended for reaction volumes below 20 µl.

The rigid polycarbonate skirt of this design eliminates warping and distortion during PCR, meaning seal integrity is not compromised and less of your sample is lost through evaporation.

Download 4titude 4ti-0720 FrameStar® 96 Well Low Profile PCR Plate Technical Drawing

Download 4titude Plate Compatibility
