4titude FrameStar® 96 Well Skirted PCR Plate - 50 Plates

Features

• Recommended for low volume PCR
• Rigid Polycarbonate frame adds to the mechanical stability of the plate - as a result thermal expansion and sample evaporation is reduced significantly, leading to an improved consistency in PCR results
• Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT, qPCR) results
• Compatible with standard multichannel pipettes
• Improved seal integrity due to thermal stability of frame
• Recommended for use with robotic systems
• 0.15 ml (150 µl) working volume, 0.2 ml (200 µl) max volume
• Raised and color differentiated grid reference to aid well and sample identification
• 50 Plates

Full Description

4titude FrameStar® 96 Well Skirted PCR Plate - 50 Plates

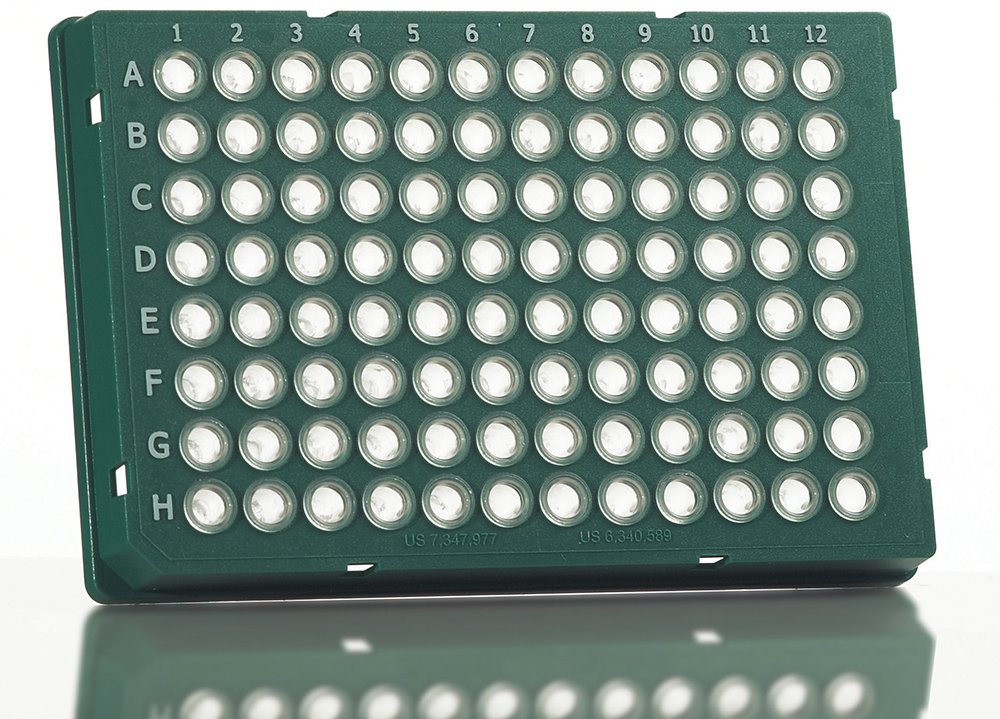

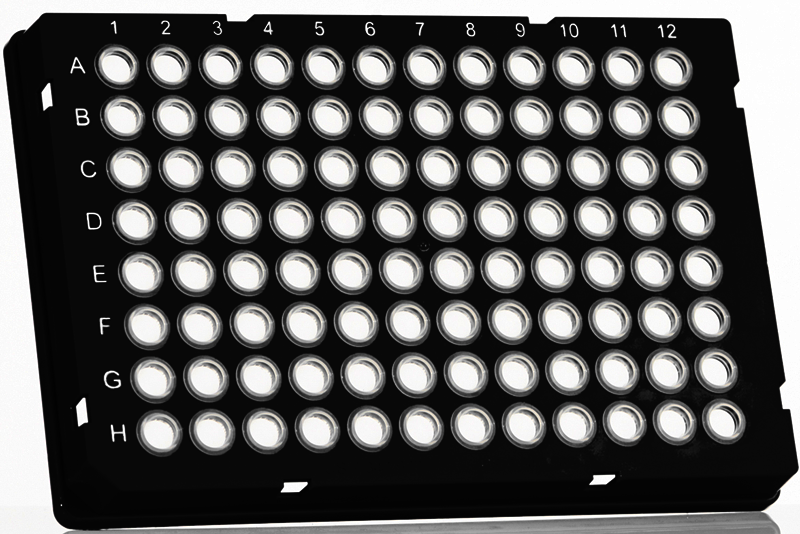

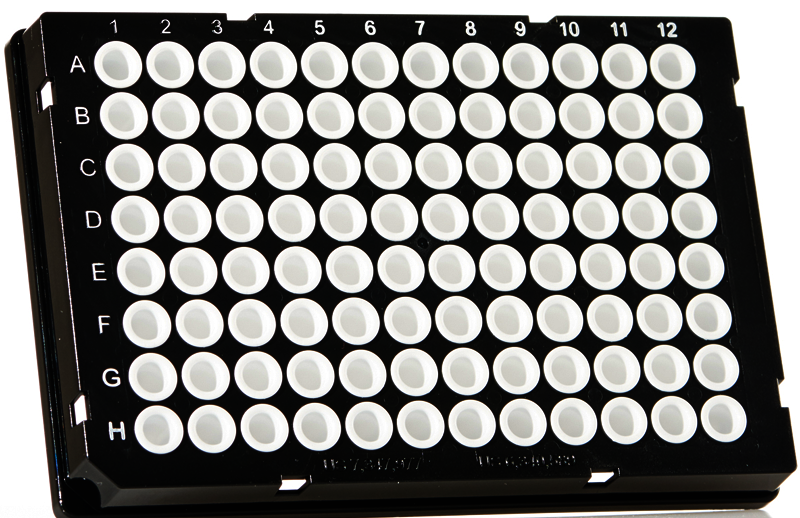

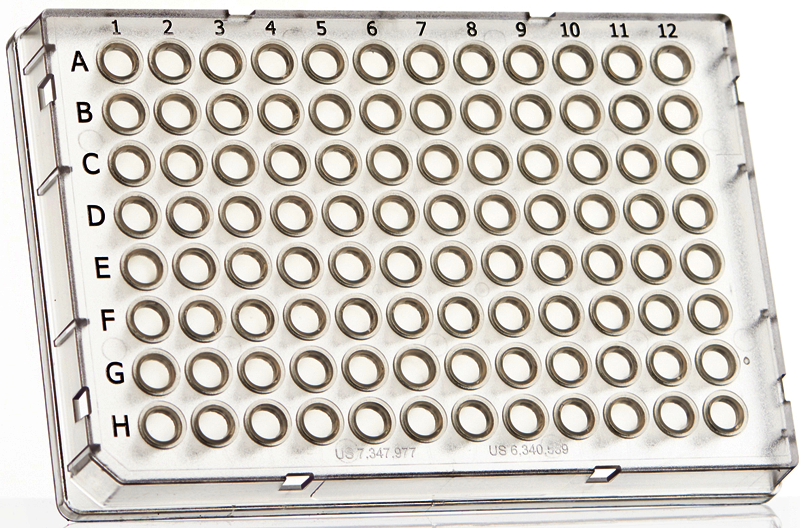

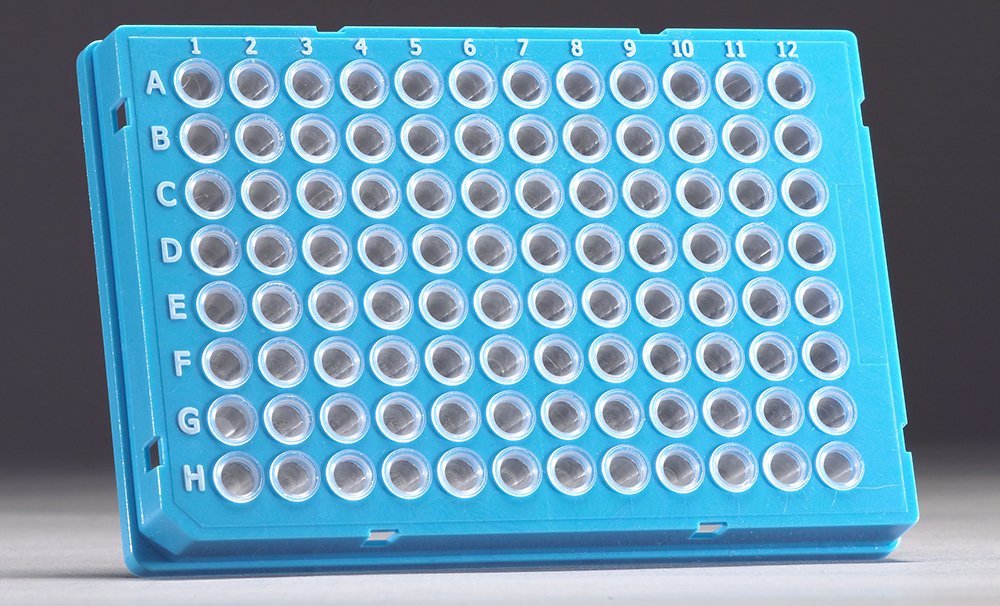

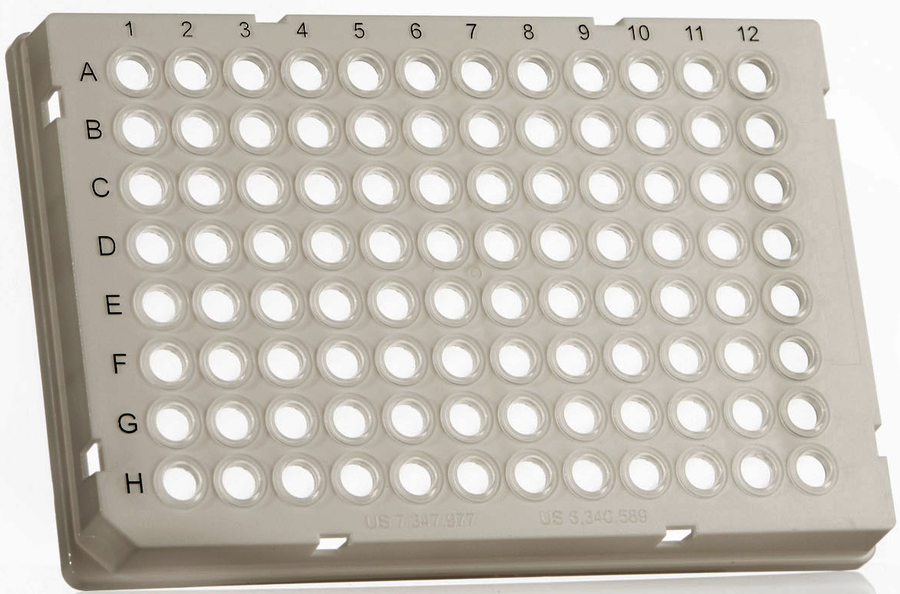

FrameStar® 96 Well Skirted Plates

Features low profile 0.15 ml polypropylene wells, a rigid polycarbonate frame, and a cut corner at H1

The low profile wells of this plate are shorter than "standard" profile wells, which decrease the "dead space" between the heated lid of the thermal cycler and the sample in the well. This eliminates condensation forming on the side wall of the tubes, preventing reduction in PCR volume and increasing the efficiency of the reaction. This is especially recommended for reaction volumes below 20 µl.

The rigid polycarbonate skirt of this design eliminates warping and distortion during PCR, and makes it ideal for use with robotic systems.
