4titude FrameStar® Low Profile Break-A-Way PCR Plate, 96-wells - 50 Plates

Features

• Fits majority of thermal cyclers
• Low profile 0.15 ml (150µl) working volume, with a 0.2 ml (200µl) maximum well volume when used with sealing option
• Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT, qPCR) results
• Rigid PCR plate that can be broken into smaller plate sections
• End tabs for easy handling and labelling
• 2-component design prevents distortion of tube strips
• Eliminates strip breakage
• 50 Platex

Full Description

4titude FrameStar® Low Profile Break-A-Way PCR Plate, 96-wells - 50 Plates

FrameStar® Low Profile Break-A-Way Plates

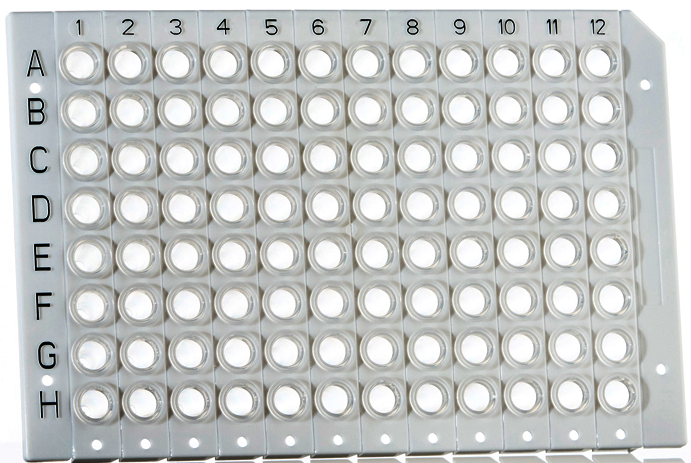

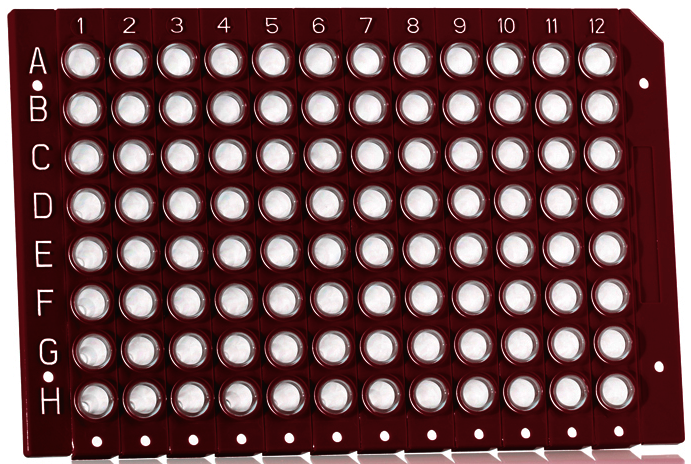

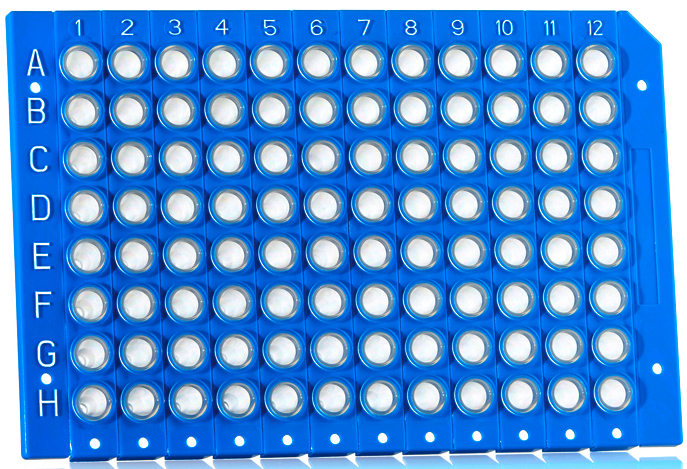

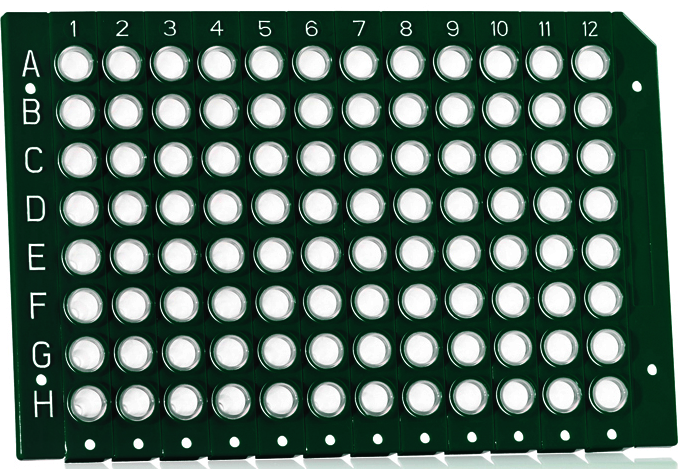

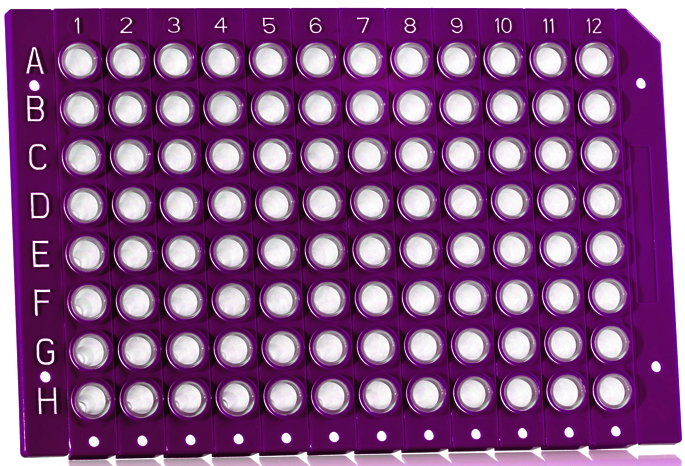

Vertically pre-perforated plate which easily snaps into strips of 8 tubes or part plates; 96-well format with low profile 0.15 ml polypropylene wells and a rigid polycarbonate frame

Our FrameStar® Break-A-Way plates utilise the 2-component design of the FrameStar® range, which combines the advantages of thin-walled polypropylene tubes for optimum PCR results and a rigid frame portion for easy and reliable handling

This low profile plate has shorter wells than the standard profile plate (4ti-1000), decreasing the "dead space" between the heated lid of the thermal cycler and the sample. This eliminates condensation on the side wall of the tube, preventing reduction in PCR volume and increasing the efficiency of the reaction. Low profile products are especially recommended for use with reaction volumes below 20 µl.

Download Technical Drawing

Download 4titude Break-A-Way Sell Sheet

Download Plate Compatibility
